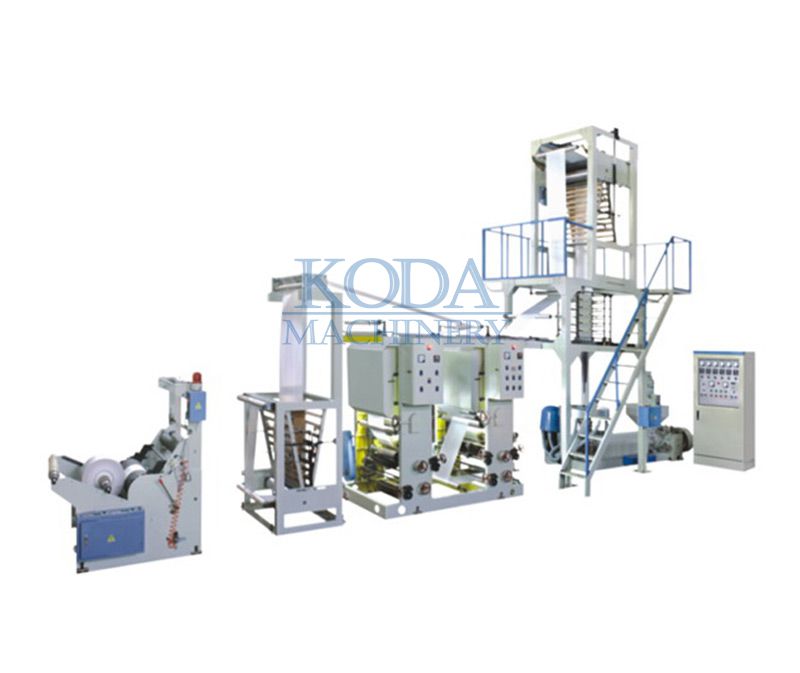

SJ-AY film blowing printing connect line set

Share:
photoes
Application
Product video
SJ-AY film blowing printing connect line set
materials

Parameter sheet

ModelSJ50-AY600SJ55-AY800SJ65-AY1000
Applied MaterialsLDPE、HDPE、LLDPELDPE、HDPE、LLDPELDPE、HDPE、LLDPE
Screw DIA50mm55m65mm
Screw L/D Ratio28:128:128:1
Blow Film Motor Power11Kw15Kw18.5Kw
Max Extruded Quantity35kg/h50Kg/h65Kg/h
Die head diameterφ60、φ100φ80、φ150φ100、φ200
Blow Film Width600mm800mm1000mm
Blow Film Thickness0.01-0.10mm0.01-0.10mm0.01-0.10mm
Length Range of Printing191-1200mm191-1200mm191-1200mm
Printing Width600mm800mm1000mm
Total Power28Kw32Kw40kw
Weight of Machinery3.5T4T5T
Dimensions of Machine6000*2400*4000mm6200*2600*4300mm6400*2800*4800mm
