KDSD-500 Double Layer Co-extrusion Stretch Film Making Machine

This machine uses LDPE and LLDPE to produce casting stretch film (could produce one-side sticky film and the other side normal)

Share:
photoes
Application
Product video
KDSD-500 Double Layer Co-extrusion Stretch Film Making Machine
materials

Use

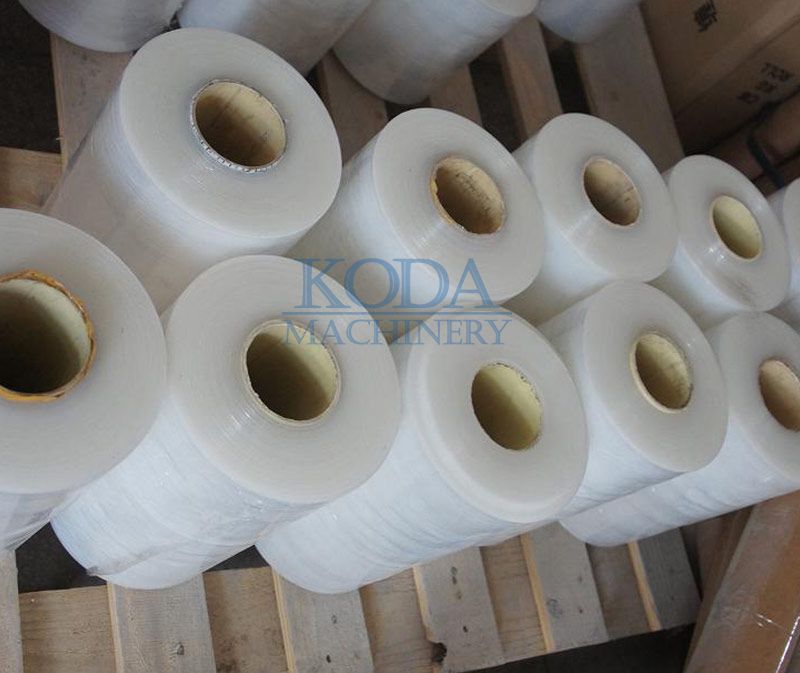

This machine uses LDPE and LLDPE to produce casting stretch film (could produce one-side sticky film and the other side normal), adopting double screws and double two hoppers. This co-extrusion stretch film is widely used in packing area for architecture, auto parts, hardware parts, etc.


Characteristics

1. Screw and cylinder are all made of 38 CrMoALA aKDSDer nitrogen treatment, which has an advantage of corrosion resistance and endurance, etc.

2. The cooling device adopts cycle water cooling which provide the best transparent effect of the stretch film

3. Rewinder adopts with friction-rewinding-type, with cutter device for edge correcting.


OPTIONAL EQUIPMENT
1) AUTO LOADER

2) AIR SHAKDSD

3) AUTO DRY HOPPER

4) ELECTRIC CHANGE
5) HYDRAULIC NET CHANGER

6) GLUE PUMP

7) AUTOMATIC LAP CHANGING APPRATUS


Main Technical Variables:

ModelKDSD-500double-layer
Diameter of Screw Stemφ55mm*2
L/D Ration of Screw28:1
Material of Screw & Barrel38 CrMoALA
Rational Speed of Screw Stem10-120rpm
Width of T-die Head650 mm
Heating WayCasting-aluminum heating device
Width of Traction Roller650 mm
Width of Products200-500mm
Thickness0.015-0.05mm
Main motor power15kw*2
Heating Power30kw
Max. output(kg/h)40
Machine weight3T
Overall Dimensions (L*W*H)4500*2600*2550mm


PICTURES

KDSD-500 Double Layer Co-extrusion Stretch Film Making Machine
